Introduction to Deep Learning (with Keras)

Topic 1: What is Deep Learning?

Deep Learning is a specialized subfield of Machine Learning. While traditional ML models (like Decision Trees or Linear Regression) are powerful, they often require you to manually engineer the features.

Deep Learning models, also known as **Artificial Neural Networks (ANNs)**, learn these features automatically. They are built using multiple "layers" of interconnected "neurons," inspired by the structure of the human brain. A "deep" network is one that has many layers.

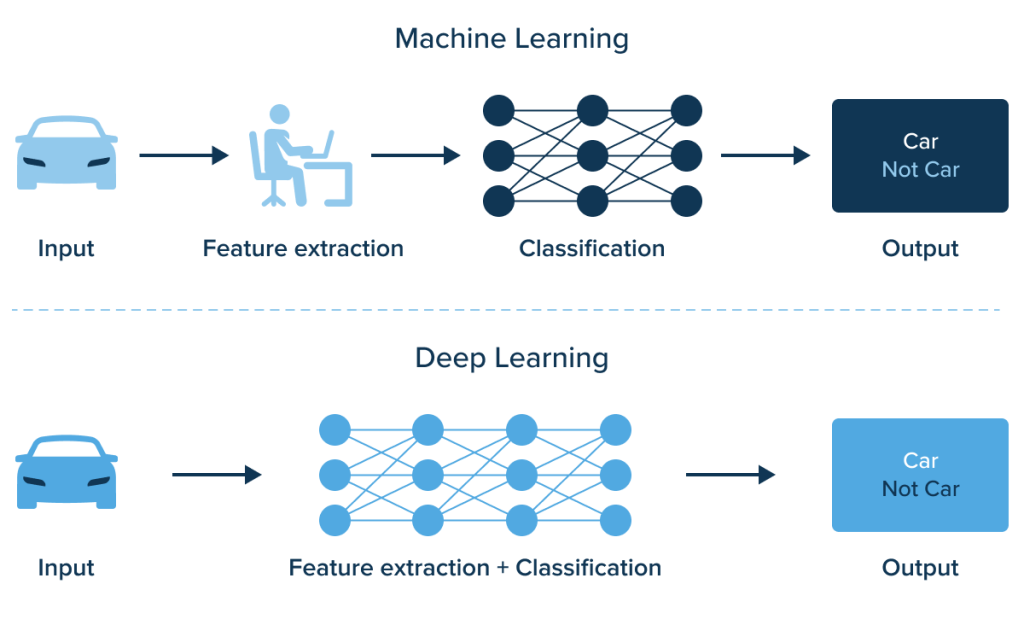

Analogy: ML vs. Deep Learning for Image Recognition




• Traditional ML: You (the human) would have to *tell* the model what to look for: "Look for 4 legs," "Look for whiskers," "Look for a tail," "Measure fur color." This is called **feature engineering**.

• Deep Learning: You just show the model thousands of pictures labeled "cat" and "dog." The first layers might learn to detect simple edges. The next layers learn to combine edges into shapes (like circles or squares). Deeper layers learn to combine shapes into features (like "eye" or "snout"), and the final layers combine those features to make a prediction ("cat").




Deep Learning excels at tasks with "unstructured" data, like images, audio, and text.



Topic 2: The Perceptron (A Single Neuron)

The simplest building block of a neural network is a **perceptron**, or a single "neuron."

Analogy: A Single Decision-Maker

A neuron is a tiny decision-maker. It takes in several pieces of information (inputs), decides how important each one is (weights), and then makes a yes/no decision (activation function).


1. Inputs (x): The data you provide (e.g., pixel 1, pixel 2, pixel 3).

2. Weights (w): A number assigned to each input, representing its *importance*. The model "learns" by adjusting these weights.

3. Bias (b): A "thumb on the scale" that helps the model fit the data, independent of any input.

4. Activation Function: A function that "fires" if the combined inputs and weights pass a certain threshold.


The neuron calculates a simple equation: `sum( (input * weight) ... ) + bias` and passes that result to the activation function.

Topic 3: The Neural Network (Layers of Neurons)

A neural network is just a collection of these neurons, stacked in layers. Data flows from left to right.

1. Input Layer

This isn't really a layer of neurons. It's just a "reception" layer that holds your raw data. For a 28x28 pixel image, the input layer has 28 * 28 = 784 nodes, one for each pixel's brightness value.

Since our data is 2D (28, 28), we use a `Flatten` layer to "unroll" it into a 1D vector of 784 inputs.

2. Hidden Layer(s)

This is the "thinking" part of the brain. These are layers of neurons (called `Dense` layers in Keras) that sit between the input and output. The model's "depth" refers to how many hidden layers it has. These layers find complex patterns.

3. Output Layer

This is the final layer that gives the answer. The number of neurons here depends on your problem:


• Regression (Price Prediction): 1 neuron.

• Binary Classification (Cat vs. Dog): 1 neuron (using a 'sigmoid' activation).

• Multi-Class Classification (Digits 0-9): 10 neurons, one for each class.


Topic 4: Activation Functions (The "Decision")

Activation functions are critical. Without them, a neural network is just a very complex linear regression. They introduce **non-linearity**, allowing the model to learn complex, curvy patterns.

1. ReLU (Rectified Linear Unit)

2. Softmax

Topic 5: How a Network "Learns" (Compile & Fit)

This is the core of training. It's a three-step process.

Step 1: The Loss Function (The "Grade")

This function measures how "wrong" the model's prediction is. Our goal is to minimize this loss.


• Analogy: A grade on a test. A high loss (high score) is bad. A low loss (low score) is good.

• `sparse_categorical_crossentropy` is the standard loss function for multi-class classification when your true labels (`y_train`) are simple integers (0, 1, 2...) and not one-hot encoded.


Step 2: The Optimizer (The "Study Plan")

This is the algorithm that *changes the weights* of the neurons to reduce the loss. It's the "study plan" the model uses to get a better grade.


• Analogy: After getting a bad grade, the optimizer tells the brain *how* to adjust its thinking (weights) to do better next time.

• `adam` is the most popular, effective, and go-to optimizer. It "adapts" the learning rate and works well for most problems.


Step 3: Backpropagation & Epochs (The "Studying")

This is the "how" of the study plan. **Backpropagation** is the process where the error from the loss function is "sent backward" through the network. Each neuron is told, "You contributed X% to the final error, so adjust your weights slightly."

An **Epoch** is one complete pass through the *entire* training dataset (one full "study session"). We usually train for multiple epochs (e.g., `epochs=5`).

Topic 6: The Overfitting Problem (Dropout)

Just like Decision Trees, neural networks are *excellent* at memorizing the training data. This is called **overfitting**. You'll see this when your **training accuracy (`accuracy`)** is high (like 99%), but your **validation accuracy (`val_accuracy`)** is much lower (like 95%).

The Solution: Dropout

Dropout is a simple but brilliant technique. During training, it **randomly "drops" (turns off) a fraction of neurons** (e.g., 20%) in a layer for each pass.

model.add(Dense(128, activation='relu'))
# Add a Dropout layer. It will randomly drop 20% of the neurons
# from the layer above it during each training step.
model.add(Dropout(0.2))
model.add(Dense(10, activation='softmax'))
