Support Vector Machines (SVM)

Topic 1: What is an SVM?

A Support Vector Machine (SVM) is a powerful supervised learning algorithm used for both classification and regression. However, it is most famous for classification.

The main idea of SVM is to find the "best" possible line (or hyperplane) that separates your classes. In a 2D space, you can draw many lines that separate two groups of dots. The "best" line is the one that is as *far as possible* from the closest points of *both* classes.

The Maximal Margin Classifier

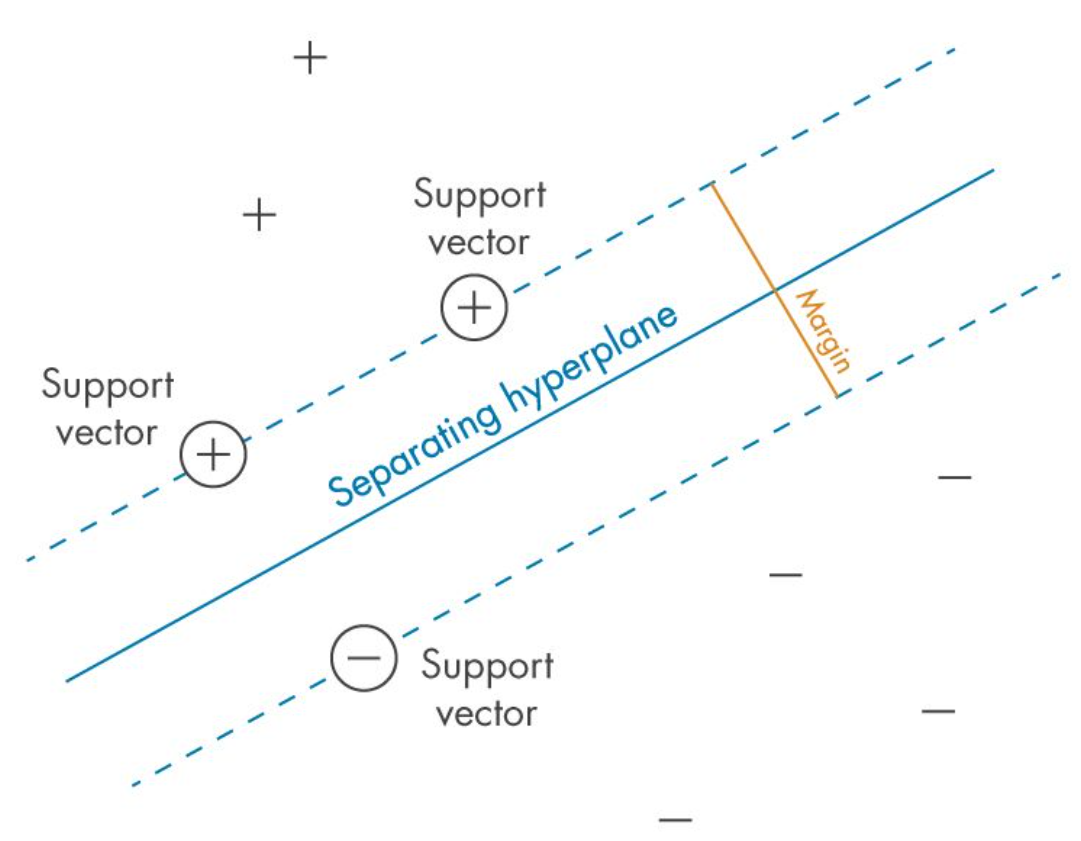

The "best" line is called the hyperplane. The "empty" space between the two classes and the hyperplane is called the **margin**. SVM tries to find the hyperplane that creates the **maximal margin** (the widest possible "street" between the classes).

The data points that sit right on the edge of this "street" are called the **Support Vectors**. They are the critical data points that "support" the hyperplane. If you moved any of these points, the hyperplane would move too. SVM is memory-efficient because it only cares about these support vectors.

Topic 2: The Kernel Trick (Handling Non-Linear Data)

The maximal margin idea works great if your data is **linearly separable** (you can draw a straight line between them).

But what if your data is in a circle, with one class in the middle and the other class surrounding it? You can't draw a single straight line to separate them.

This is where the **Kernel Trick** comes in. A "kernel" is a mathematical function that takes your low-dimensional data (e.g., 2D) and projects it into a *higher dimension* where it *becomes* linearly separable.

Analogy: A Plate of Marbles

Imagine red and blue marbles mixed together on a flat plate (2D). You can't separate them with one line. The Kernel Trick is like "hitting" the plate from underneath. The marbles fly into the air (3D). For a brief moment, you can easily slide a piece of paper (a 2D hyperplane) between the red marbles (which flew higher) and the blue marbles (which stayed lower).

The most popular kernel is the **Radial Basis Function (RBF) kernel**. It is the default in `sklearn` and is powerful enough to handle complex, non-linear data.

Topic 3: Key Hyperparameters: C and Gamma

SVMs are not "plug-and-play." Their performance depends heavily on tuning two key parameters. **Note:** You must scale your data (e.g., with `StandardScaler`) before using an SVM, as it is very sensitive to feature scales.

1. The `C` Parameter (Regularization)

The `C` parameter controls the trade-off between having a wide margin and correctly classifying all training points.

• Small `C` (e.g., 0.1): A *wide* margin. The model is "soft" and allows some training points to be misclassified (or be inside the margin) to achieve a simpler, more general decision boundary. **(High regularization, low variance)**
• Large `C` (e.g., 100): A *narrow* margin. The model is "hard" and tries to classify *every* training point correctly, which can lead to a complex, "wiggly" boundary that overfits the data. **(Low regularization, high variance)**

2. The `gamma` Parameter (RBF Kernel)

The `gamma` parameter defines how much "influence" a single training example has. It only applies to non-linear kernels like RBF.

• Small `gamma` (e.g., 0.01): A large influence. The model is "looser," and the decision boundary is very smooth. **(Low variance)**
• Large `gamma` (e.g., 10): A small, local influence. Each point only affects its immediate neighbors. The decision boundary becomes highly "wiggly" and complex, as it tries to perfectly fit every single point. **(High variance, high risk of overfitting)**

Topic 4: Advantages and Disadvantages

Advantages

• Effective in high-dimensional spaces: Works well even when you have many more features than samples.
• Memory Efficient: Uses only a subset of training points (the support vectors) in the decision function.
• Versatile: Different kernel functions can be specified for the decision function.

Disadvantages

• Computationally Slow: Does not scale well to very large datasets (e.g., 100,000+ rows). Training time can be very long.
• Hard to Tune: Performance is highly dependent on finding the right `kernel`, `C`, and `gamma` parameters. This often requires a "Grid Search."
• Poor "Out-of-the-Box" Performance: Unlike Random Forest, a default SVM will often perform badly if the data isn't scaled or if `C`/`gamma` are wrong.
